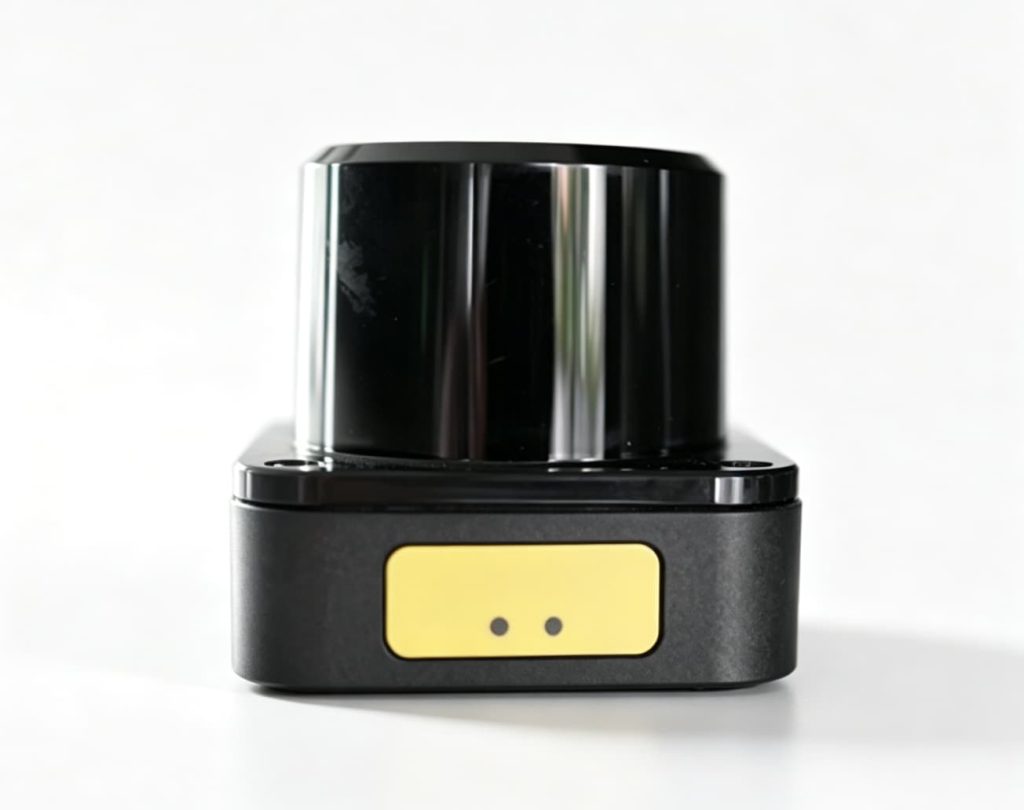

LakiBeam is a single‑line LiDAR developed for medium and low‑speed scenarios. The industrial design is exquisite and compact, making the product small in size, light in weight, and high in performance. It supports ultra‑high frequency sampling and optional angular resolution, and achieves zero blind spot within the detection range.
LakiBeam can be used in industrial automation, port automation. It is widely used in AGV obstacle avoidance as the main laser of indoor robots and the oblique laser of outdoor robots for mapping and obstacle avoidance.
LakiBeam is divided into five models to best meet your varying needs in terms of detection range, price, angular resolution, and more.
Through simulation tests conducted for application scenarios involving various materials, LakiBeam LiDAR reliably detects objects made of stainless steel plates, marble tiles, glass, reflective tape, diamond‑grade reflective tape, thin poles, right‑angle grooves, and other surfaces. The resulting point cloud accurately reproduces the shape of each detected object.
| LakiBeam1S | LakiBeam1 | LakiBeam1L | LakiBeam1H | LakiBeam1H Pro | |
| Detection Range | ≥15 m (90% reflectivity) ≥10 m (10% reflectivity) | ≥25 m (90% reflectivity) ≥15 m (10% reflectivity) | ≥50 m (90% reflectivity) ≥20 m (10% reflectivity) | ≥50 m (90% reflectivity) ≥25 m (10% reflectivity) | ≥75 m (90% reflectivity) ≥35 m (10% reflectivity) |
| Accuracy | ±2cm | ±2cm | ±2cm | ±2cm | ±（1cm-1.5cm） |
| Horizontal Field of View | 270° | 270° | 270° | 300° | 300° |
| Horizontal Angular Resolution | 0.2°，0.5° | 0.1°，0.25°，0.25°，0.25° | 0.1°，0.25°，0.25°，0.25° | 0.04°，0.08° | 0.04°，0.12°，0.08° |
| Laser Class | Class 1 Eye-safe | Class 1 Eye-safe | Class 1 Eye-safe | Class 1 Eye-safe | Class 1 Eye-safe |
| Wavelength | 940nm | 940nm | 940nm | 940nm | 940nm |
| Protection Rating | IP65 | IP65 | IP65 | IP65 | IP65 |
| Power Consumption | ≤2W | ≤2W | ≤2W | ≤5W | ≤5W |
| Operating Voltage | 9V-36V | 9V-36V | 9V-36V | 9V-36V | 9V-36V |
| Weight | 160g | 160g | 160g | 250g | 250g |

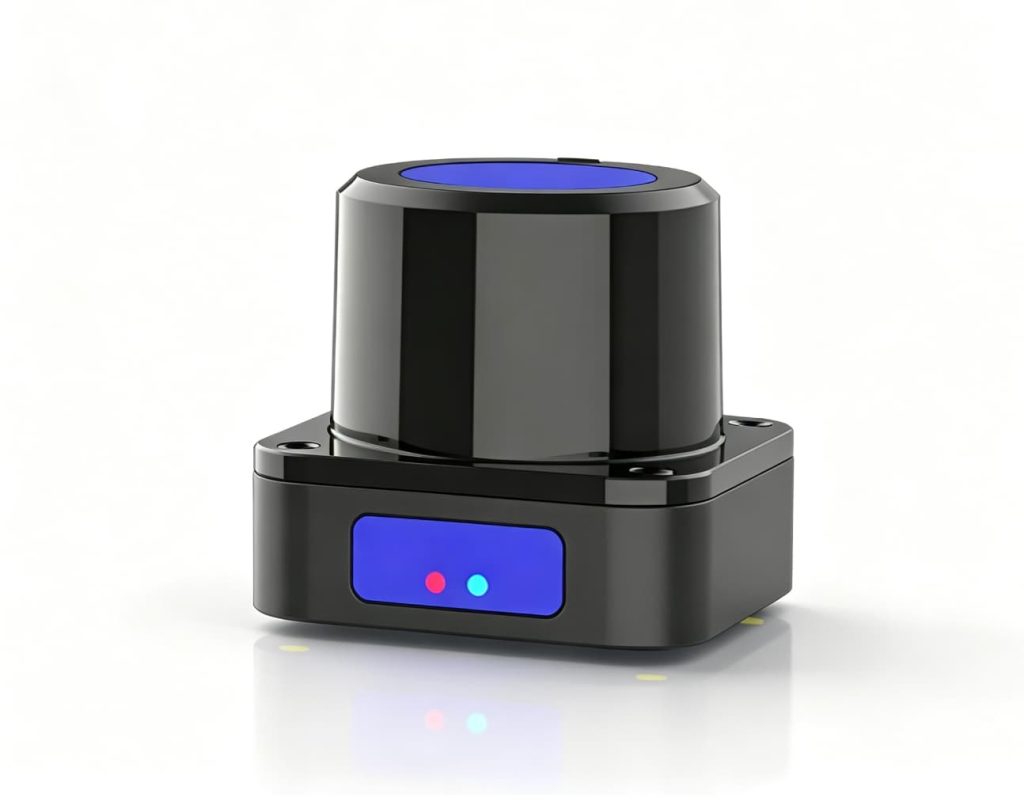

KoraBeam is an obstacle‑avoidance LiDAR designed for commercial applications such as robotics, AGVs (Automated Guided Vehicles), and autonomous driving, as well as industrial scenarios including security warning, hazardous area monitoring, and driving zone detection. Unlike traditional single‑line LiDAR, it offers intuitive ease of use through its I/O switching outputs. This feature enables users to integrate and deploy the system with minimal configuration.
You can freely set different alarm zones according to your actual operating environment, and the data sampling and point cloud performance provide highly reliable data support for collision‑avoidance warnings.
The internal structure is compact and ingeniously designed. Compared with the LakiBeam series, the KoraBeam is 45% smaller in volume, weighs only 85g – about the size of an egg – making it easy for users to integrate internally.
| KoraBeam1E | KoraBeam1S | KoraBeam1 | KoraBeam1L | |
| Detection Range | ≥10 m (90% reflectivity) ≥8 m (10% reflectivity) | ≥10 m (90% reflectivity) ≥5 m (10% reflectivity) | ≥20 m (90% reflectivity) ≥10 m (10% reflectivity) | ≥40 m (90% reflectivity) ≥20 m (10% reflectivity) |
| Accuracy | ±1cm | ±2cm | ±2cm | ±2cm |
| Horizontal Field of View | 360° | 270° | 270° | 300° |
| Horizontal Angular Resolution | 0.9° | 0.16°，0.24°，0.32°，0.4°，0.48° | 0.16°，0.24°，0.32°，0.4°，0.48° | 0.16°，0.24°，0.32°，0.4°，0.48° |
| Laser Class | Class 1 Eye-safe | Class 1 Eye-safe | Class 1 Eye-safe | Class 1 Eye-safe |
| Wavelength | 905nm | 905nm | 905nm | 905nm |
| Protection Rating | IP66, IP67 (optional) | IP66, IP67 (optional) | IP66, IP67 (optional) | |
| Power Consumption | ≤1.5W | ≤2.5W | ≤2.5W | ≤2.5W |
| Operating Voltage | 9V-36V | 9V-36V | 9V-36V | 9V-36V |
| Weight | 51g | 85g | 85g | 85g |

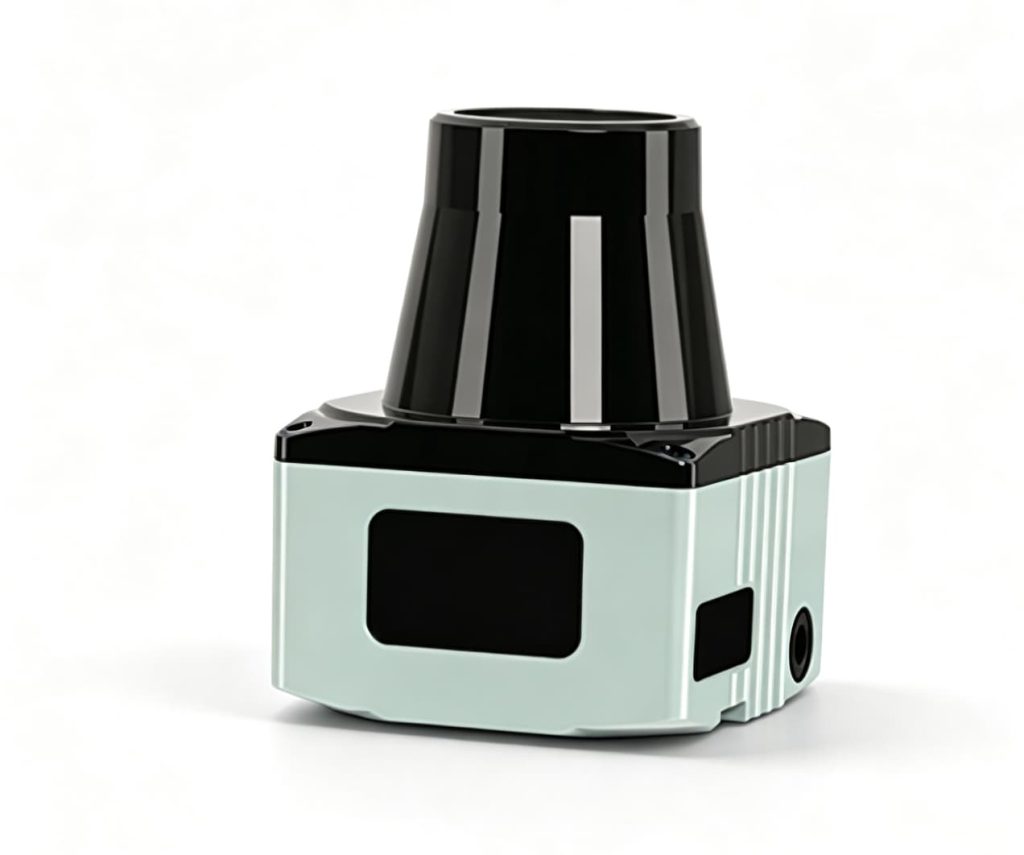

The LoraBeam is a single‑line dTOF LiDAR that, through a new architectural innovation, achieves a dual breakthrough in short‑range measurement and centimeter‑level accuracy. Its industrial design significantly reduces both size and power consumption compared to similar models, offering outstanding cost‑effectiveness. With LoraBeam, you can easily acquire field data and efficiently accelerate your robotics and industrial measurement projects.
In handheld mode, LoraBeam is unaffected by jolts or slight swaying caused by human movement. Its maximum effective detection range reaches 40 meters, making it suitable for robot mapping, industrial measurement, navigation, and obstacle avoidance.
The product itself is rugged and reliable, having passed simulated environmental tests including light, temperature, dust, and fog. Its powerful computing capability handles a large volume of return data, enabling faster detection decisions.
| LoraBeam1S | LoraBeam1 | LoraBeam1L | |
| Detection Range | ≥15 m (90% reflectivity) ≥10m (10% reflectivity) | ≥25 m (90% reflectivity) ≥15 m (10% reflectivity) | ≥40 m (90% reflectivity) ≥20 m (10% reflectivity) |
| Accuracy | ±2cm | ±2cm | ±2cm |
| Horizontal Field of View | 270° | 270° | 270° |
| Horizontal Angular Resolution | 0.24°,0.36°,0.48° | 0.08°,0.12°,0.16°,0.2°,0.24° | 0.08°,0.12°,0.16°,0.2°,0.24° |
| Laser Class | Class 1 Eye-safe | Class 1 Eye-safe | Class 1 Eye-safe |
| Wavelength | 905nm | 905nm | 905nm |
| Protection Rating | IP66, IP67 (optional) | IP66, IP67 (optional) | IP66, IP67 (optional) |
| Power Consumption | ≤1.5W | ≤2.5W | ≤2.5W |
| Operating Voltage | 9V-36V | 9V-36V | 9V-36V |
| Weight | 85g | 85g | 85g |
